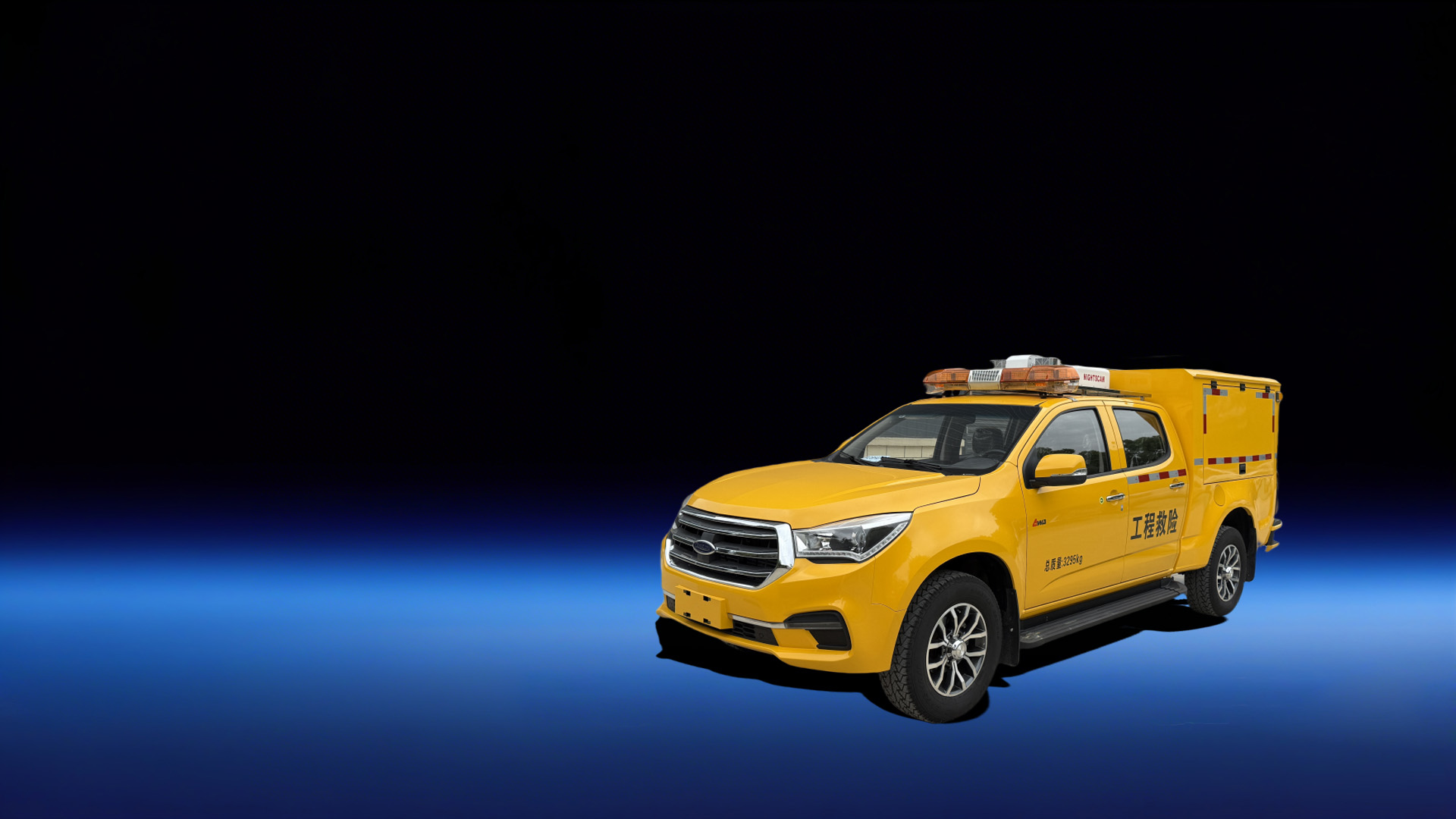

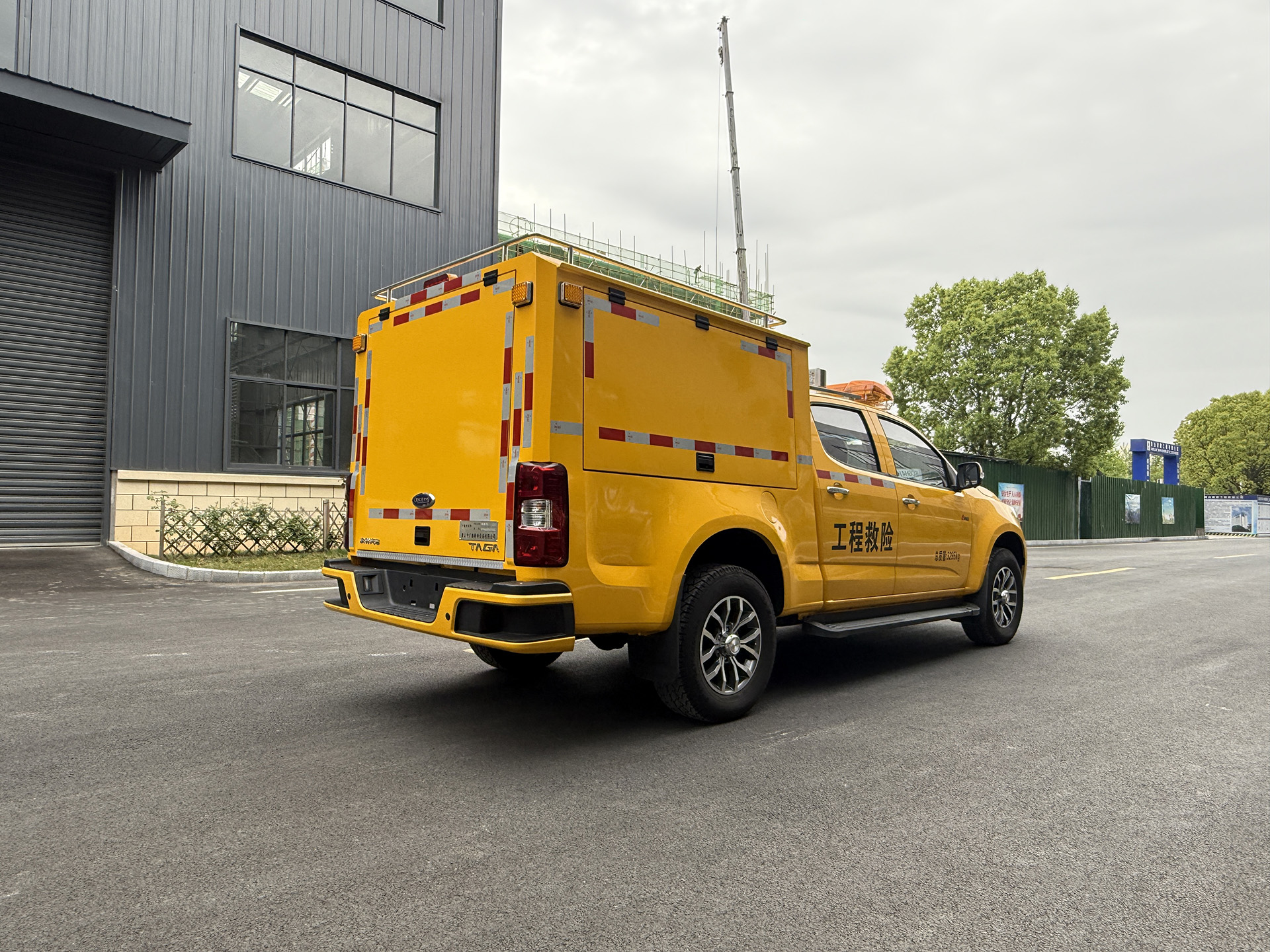

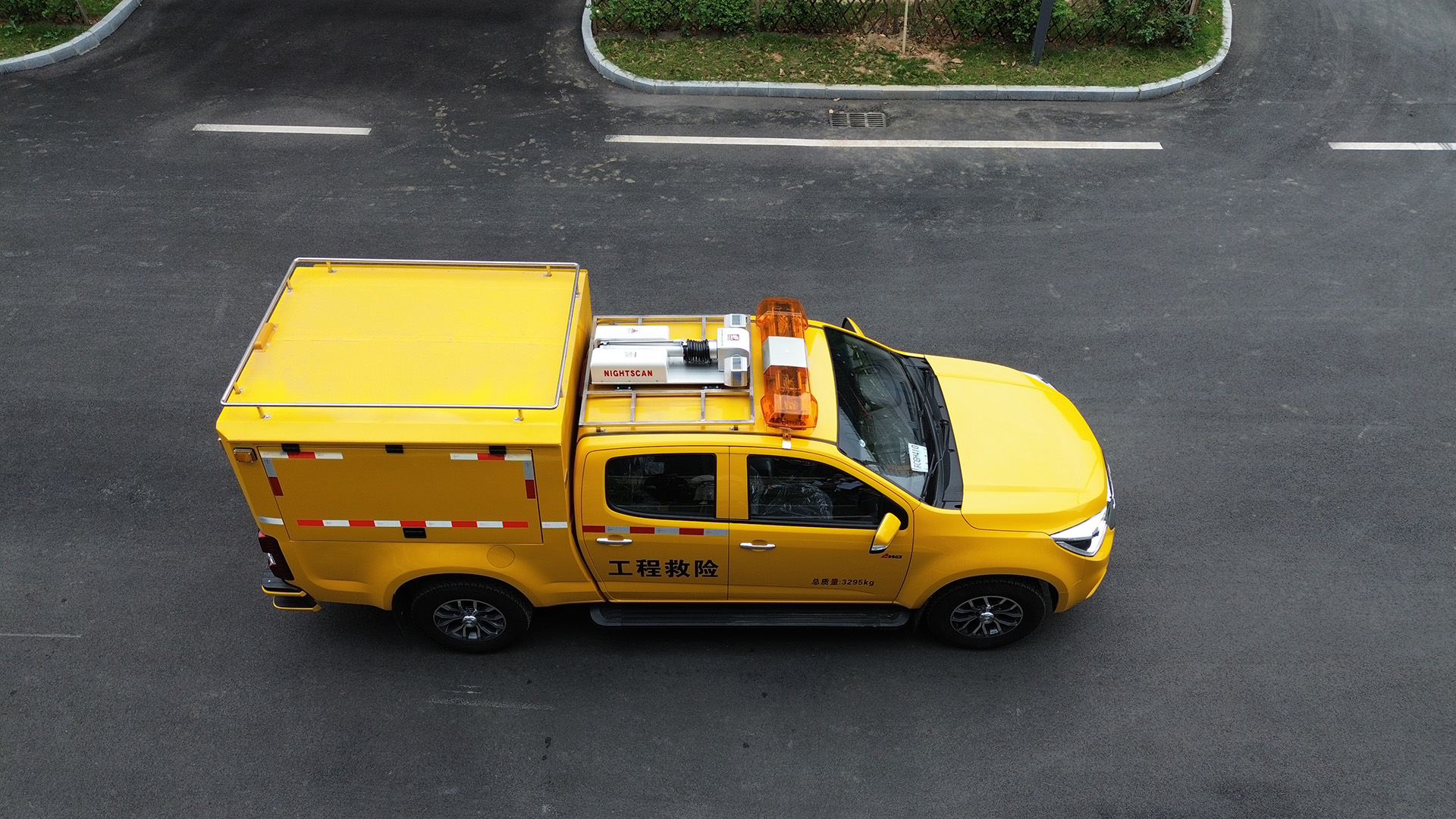

The Qingling pickup truck electric pump drainage rescue vehicle (Zhonghui Techeng brand ZGT-500) is a lightweight emergency drainage equipment modified from the Qingling QL2040CTHWY four-wheel drive pickup chassis by Huangshan Zhongguangtai Special Equipment Co., Ltd. Its total weight is 3510 kg, the vehicle size is 5660×1877×2200 mm, it complies with the national VI emission standards, and the announcement name is "Rescue Vehicle" and it enjoys the tax exemption policy for purchase. This vehicle focuses on "efficiency, flexibility, and durability", and is specially designed for small-scale drainage scenarios in complex road conditions. It is a lightweight and handy tool for flood control emergency and municipal rescue.

"Core positioning and application scenarios

This vehicle is mainly used for flood emergency drainage (in low-lying areas of highways, culverts, tunnels, underground garages, subways, etc.), remote water supply for forest fire prevention, municipal sewage discharge from manholes and rivers, agricultural water extraction for drought resistance, and drainage operations in narrow spaces. Its compact body and four-wheel drive off-road performance are particularly suitable for complex urban streets and alleys, rural roads, and unpaved roads in the wild. It can quickly respond to sudden water accumulation emergencies and fill the emergency gap left by large equipment that cannot reach such scenarios."

"Core Configuration and Performance Advantages

1. Power and Chassis Performance

Equipped with Qingling 4KH1CT6S1 diesel engine with a power of 110KW, displacement of 2999ml, maximum speed of 140km/h. The engine is powerful and has excellent fuel economy. It adopts a manual time-split four-wheel drive (4×4) system, equipped with TOD sequential four-wheel drive (supporting 2H/AUTO/4H/4L modes) and off-road tires, with outstanding off-road performance, capable of adapting to complex road conditions such as muddy and steep slopes. The chassis is standardly equipped with ABS anti-lock system, 360° panoramic camera, front and rear radars, and tire pressure monitoring, ensuring driving safety."

"2. Efficient Drainage System

Equipped with 1 portable submersible pump, with a rated flow of 500 m3/h (head 12 m) and a maximum flow of 600 m3/h (head 10 m), it can discharge water quickly within 3-5 seconds. The pump uses a permanent magnet synchronous motor (with protection level IP68), capable of passing through 25 mm solid particles. The pump body and hydraulic components (impeller, pump shaft) are made of wear-resistant and corrosion-resistant stainless steel, compatible with 10-meter waterproof cable and 20-meter special water hose, suitable for various water quality environments."

"3. Intelligent Control and Power Assurance

Support remote control via mobile app or computer interface. It can monitor parameters such as pump speed, current, and temperature in real time, enabling one-click start and unmanned operation, thereby reducing labor costs. Equipped with a 30KW Wuxi brushless generator set, the fuel tank capacity is sufficient for 8-hour full-load operation. It is equipped with the Smartgen intelligent control system, which offers multiple protections such as overvoltage, undervoltage, and overheating. It is also compatible with mains power supply, ensuring stable and reliable power supply."

"4. Professional Operation Design

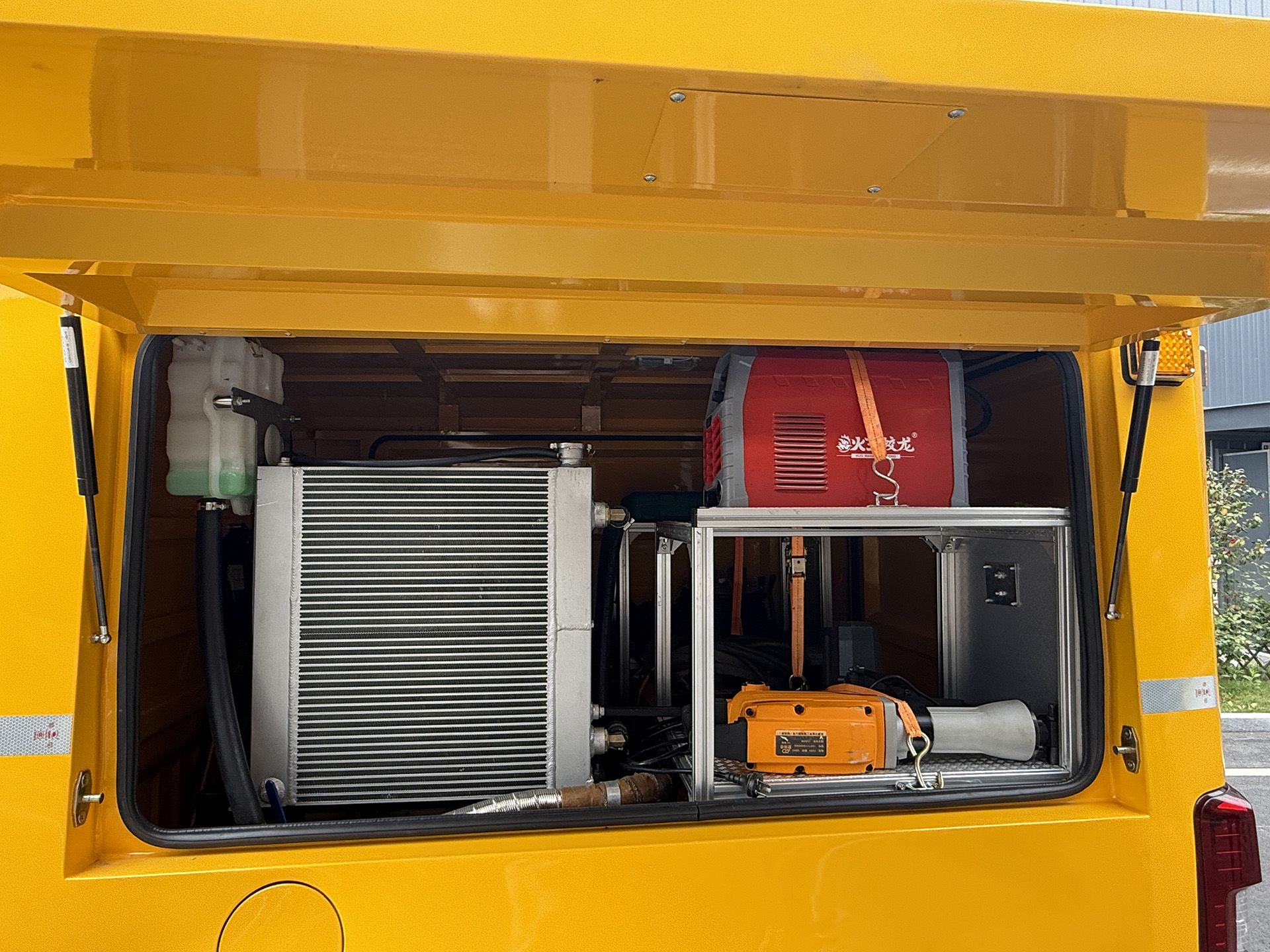

The enclosure adopts an integrated fully enclosed structure. The outer skin is made of rust-proof cold-rolled steel, featuring rainproof, fireproof and soundproof functions. The interior integrates control systems, water pumps and accessories, with a compact and practical layout. It is equipped with a 1.2-meter lifting lighting fixture (300W LED, 360° rotation, remote control) and a long row of warning lights (with flashing, alarm and speech functions), meeting the needs of night operations. The vehicle body is painted in Y07 engineering yellow warning color and is marked with reflective signs to enhance the identification during operations."

"5. Safety and Durability

All the vehicle's fastening components (bolts, washers, etc.) are made of stainless steel, and their corrosion resistance meets the standards of GB/T1220-2007; it is equipped with 2 dry powder fire extinguishers, a dedicated grounding device (including 10-meter grounding wire) and a lightning protection system. The water pump has automatic protection functions against overvoltage, undervoltage, short circuits, etc. The entire vehicle (including the upper structure) has a design lifespan of ≥15 years, which complies with multiple national standards such as GB7258-2017, and has passed ISO9001 quality system certification.

This vehicle focuses on high maneuverability, intelligent control and efficient drainage as its core advantages, while also taking into account off-road passability and operational flexibility. It provides a convenient and reliable solution for small-scale emergency drainage operations, helping to enhance the emergency response capabilities of grassroots disaster prevention and mitigation."
