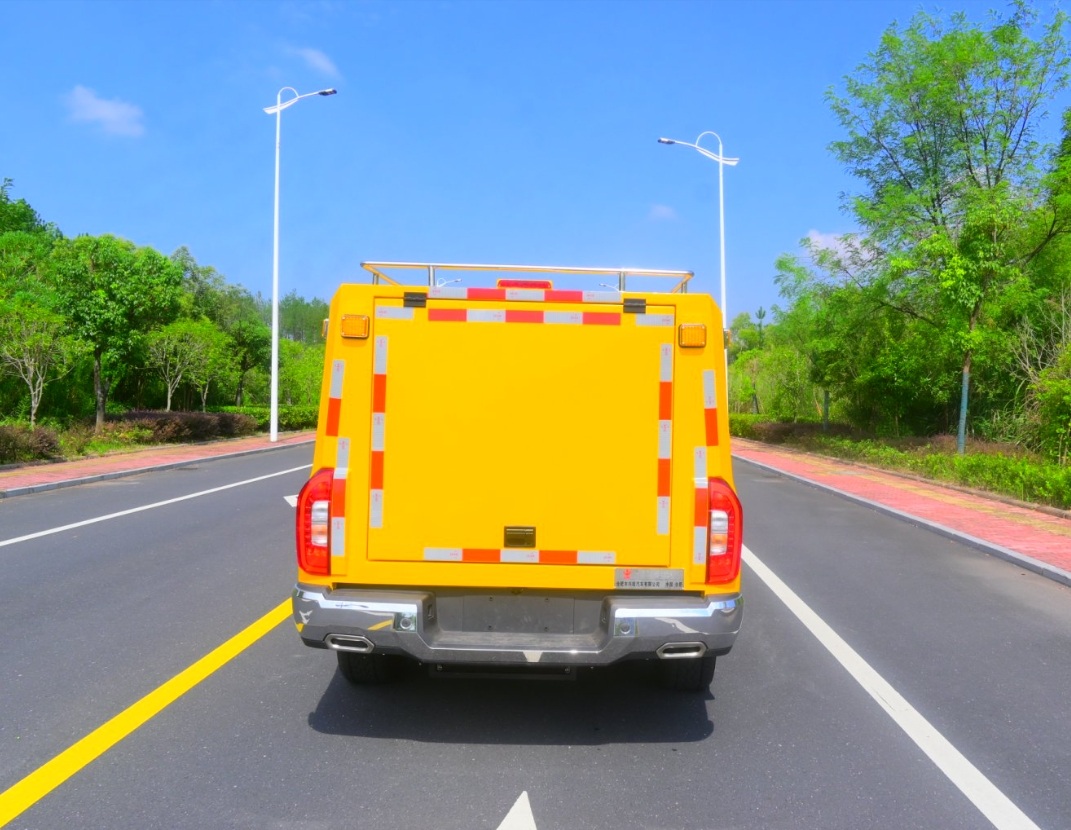

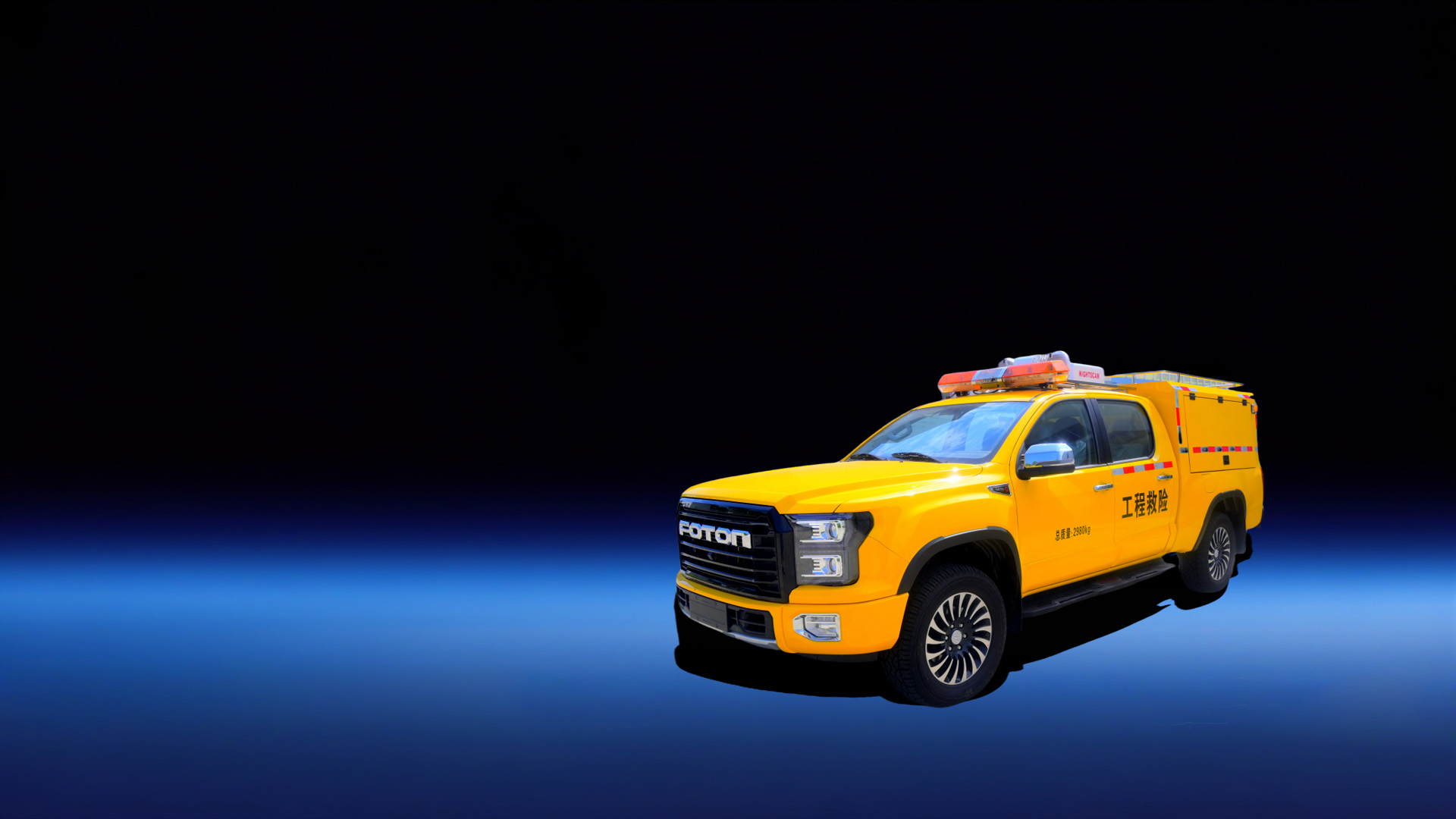

"The Foton General Pickup Hydraulic Drainage Vehicle is a lightweight and highly efficient drainage equipment developed by Huangshan Zhongguantai Special Equipment Co., Ltd. based on the chassis of the Fude General-Purpose G9 manual four-wheel drive diesel model. The total weight is 2980 kg, the vehicle size is 5630 × 1980 × 2000 mm, it complies with the Euro VI B emission standard, and enjoys the tax exemption policy for purchase. This vehicle is centered around ""efficiency, flexibility, and durability"", integrating hydraulic drive technology and intelligent control functions. It is specifically designed for medium-scale drainage scenarios in complex road conditions, making it an ideal choice for flood emergency response, municipal emergency rescue, agricultural drought resistance, well drainage in urban and rural areas, and river and canal sewage discharge.

Core positioning and application scenarios

This vehicle is mainly used for flood emergency drainage (in low-injection areas of highways, culverts, tunnels, underground garages, etc.), remote water supply for forest fire prevention, municipal well/river sewage discharge, foundation pit drainage, and agricultural drought resistance water extraction, etc. The high maneuverability and four-wheel drive off-road performance of the pickup chassis make it particularly suitable for urban streets, rural roads, and unpaved outdoor surfaces. It can quickly respond to sudden water accumulation emergencies and fill the emergency drainage needs in areas that large equipment cannot reach."

"Core configuration and performance advantages

1. Power and chassis performance

Equipped with a 4F20TC diesel engine with a power output of 120KW, it is fitted with a TOD on-demand four-wheel drive system (supporting 2H/AUTO/4H/4L modes) and off-road tires, offering outstanding off-road capabilities. The chassis is standard with an ABS anti-lock braking system, TCS traction control system, 360° panoramic view, front and rear radars, and tire pressure monitoring, ensuring driving safety in complex road conditions; a 76L large-capacity fuel tank provides strong endurance."

"2. Efficient Hydraulic Drainage System

Equipped with 2 Zhonghuitieceng ZGT-500-10 hydraulic submersible pumps, each pump has a flow rate of 500m3/h (with a lift of 10m), and the total drainage capacity reaches 1000m3/h (with a total lift of 12m), with water discharged within 3-5 seconds. The pumps are made of high-strength stainless steel and can pass through solid particles of 25mm. The bare pump weighs≤28kg. It is compatible with a 20-meter hydraulic hose (total length of 80 meters) and a 40-meter special water hose (8 inches, working pressure 0.9MPa). The hydraulic system draws power from the chassis engine through a full-power torque converter and is equipped with 2 air-cooled coolers (each with a heat dissipation area of 0.36m²), meeting the cooling requirements for 8-hour continuous operation, and is stable and reliable in performance."

"3. Intelligent Control and Reliability

Supports local operation and remote control (via mobile app or PC), enabling real-time monitoring of pump speed, pressure, and fault status, and achieving one-click start and unmanned operation. The control system has an average downtime of 6,000 hours and features multiple protection functions such as overvoltage, overload, and overheating. The hydraulic oil pump has a rated pressure of 20 MPa, a volumetric efficiency of ≥ 93%, and is equipped with a 95L stainless steel oil tank, demonstrating excellent corrosion resistance."

"4. Professional Operation Design

The enclosure adopts an integrated fully enclosed structure. The outer skin is made of rust-proof cold-rolled steel, featuring rainproof, fireproof and soundproof functions. The interior is modularly laid out, integrating control systems, water pumps and accessories, with convenient operation. It is equipped with a 1.2-meter lifting lighting fixture (300W LED, 360° rotation, remote control) and a long row of warning lights (with flashing, alarm and speech functions), meeting the needs of night operations. The body adopts the Y07 engineering yellow warning color and is marked with reflective signs to enhance the identification of the operation."

"5. Safety and Durability

All the vehicle's fastening components (bolts, washers, etc.) are made of stainless steel, and their corrosion resistance meets the standards of GB/T1220-2007; it is equipped with 2 dry powder fire extinguishers, a dedicated grounding device and a lightning protection system. The filter screen at the water inlet of the water pump is made of 304 stainless steel, which is easy to disassemble and clean. The design service life of the entire vehicle (including the upper structure) is ≥ 15 years, meeting multiple national standards such as GB7258-2017, and has passed ISO9001 quality system certification.

This vehicle offers a reliable solution for medium-scale emergency drainage by combining the efficiency of hydraulic drive, the flexibility of pickup truck chassis, and the convenience of intelligent control. It balances mobility and operational efficiency, helping to enhance the emergency response capabilities of grassroots disaster prevention and mitigation."
