Overview
The first 3-5 minutes of a fire are the golden window for initial suppression. With its compact body and small turning radius, this mini fire truck can quickly travel through village roads, back alleys and internal factory lanes to reach the fire scene, bring an early-stage fire under control, and gain valuable time before the professional fire brigade arrives.
Six Key Advantages
● High maneuverability: compact body, small turning radius — enters alleys, gaps between buildings and narrow lanes that large fire trucks cannot reach
● Independent power: the fire pump is driven by a dedicated gasoline engine, fully separate from the driving system — all firefighting operations work even with the vehicle engine off
● Three water sources: tank water / municipal hydrant / open-water suction (rivers and ponds), freely switchable
● Multi-purpose: fire suppression, road dust suppression, greening irrigation and emergency water delivery — can serve daily sanitation duties when idle
● Fast response: quick start, simple operation, all tasks handled by 1-2 people; ordinary drivers can operate independently after short training
● Cost-effective: simple tricycle chassis, easy maintenance, universal spare parts — far more economical than full-size fire trucks
The vehicle consists of five core modules: fire pump, warning light, chassis, water tank and fire monitor.
Market Applications
● [Residential fire response] Narrow gaps between buildings keep large fire trucks out — this truck passes through to handle ground-floor balcony, corridor storage and e-bike fires; hydrant supply where available, tank water plus nearby pond suction in old villages without hydrant networks
● [Urban flood relief] For rainstorm-caused road flooding, underground garage backflow and tunnel water accumulation — rapidly lowers water levels and restores traffic
● [Agricultural drainage and irrigation] Deployed directly at field edges for farmland waterlogging and pond breaches — high-flow drainage reduces crop soaking losses, with an irrigation mode switch
● [Long-distance water supply] In forest firefighting, serves as a remote water supply unit delivering water through long hose lines to feed fire trucks when the water source is far from the fire ground

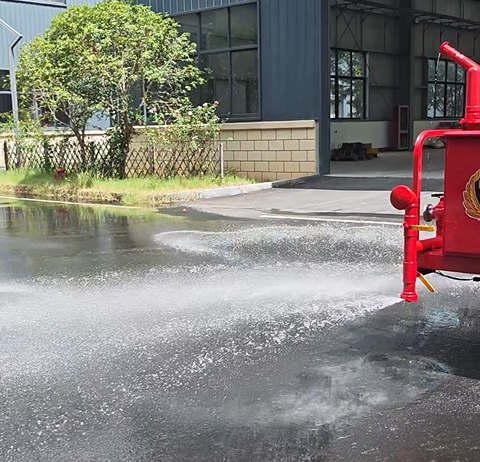

Multi-Purpose — Water Sprinkling Function
Beyond firefighting, the vehicle integrates a road sprinkling function based on the same water tank, dedicated gasoline fire pump and fire monitor circuit — covering road dust suppression, road washing, greening irrigation, site cooling and waste-site dust control. Sprinkling and firefighting share the same pump-valve water circuit; no extra equipment is required.
● Mode 1: stationary sprinkling with the vehicle parked
● Mode 2: sprinkling while driving at low speed
● Monitor adjustment: aim the rear fire monitor at the ground to one side and switch the nozzle to spray mode for fan-shaped coverage
|
Item |
Specification |
|
Chassis Model |
JP150ZH premium tricycle |
|
Chassis Engine Power |
8.2 kW (rated) |
|
Unladen Weight / Rated Load |
398 kg / 300 kg |
|
Fire Pump Engine |
XBL 212cc gasoline engine, 7.5 HP |
|
Pump Start Mode |
Electric start + recoil (manual) start |
|
Flow Rate |
30 m³/h |
|
Head |
50 m |
|
Jet Range |
≥ 30 m |
|
Suction Lift |
8 m |
|
Tank Capacity |
1500 L |
|
Overall Dimensions (L×W×H) |
3100 × 1300 × 1550 mm |
|
Fuel / Medium |
Gasoline / Water |
1 1500 L Water Tank System
The tank is welded from 2.5 mm low-carbon steel with full seam welding and an internal pressure-resistant structure. It features a top quick-open manhole, overflow pipe, bottom drain ball valve and tank outlet flange.
● Dual anti-corrosion: food-grade epoxy coating inside for long-term water immersion, rust and scale resistance; high-temperature electrostatic red paint outside
● Water level limit: overflow port at the maximum water level discharges excess water automatically, preventing overflow onto the chassis during driving
● Drainage maintenance: drain valve at the lowest tank point discharges sediment and rust regularly, protecting the pump impeller from clogging
● Shock mounting: multiple fixing brackets with rubber buffers lock the tank onto the chassis frame, isolating driving vibration and preventing weld-seam fatigue leakage
2 Fire Monitor (Water Cannon)

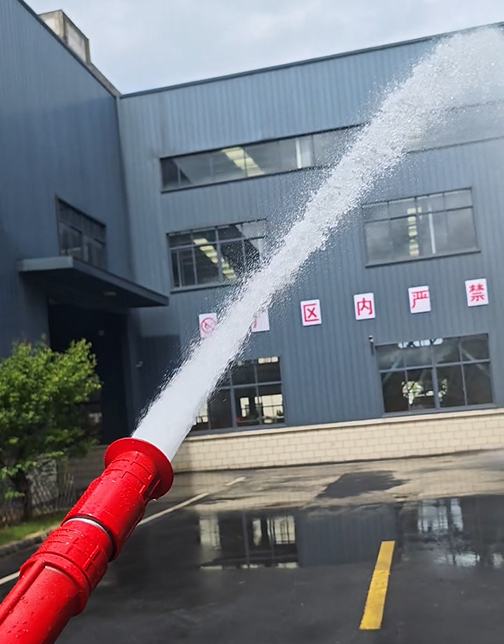

● Dual mode — straight stream / spray: one-knob switching; straight stream delivers a concentrated jet with a range ≥ 30 m; spray mode produces an umbrella mist for large-area cooling and isolating combustible vapor
● Multi-angle adjustment: hand-wheel controlled 360° horizontal rotation and -10° to +60° elevation, adjustable by a single person
● Compatible with all three water sources: tank water, hydrant supply and open-water suction can all feed the monitor through the pipework
● Operating platform: rear platform beside the monitor for clearing blockages and daily greasing
3 High-Pressure Fire Pump
The fire pump is directly driven via a coupling by a XBL 212cc single-cylinder 4-stroke air-cooled gasoline engine. The centrifugal pump generates vacuum suction and discharge pressure through high-speed impeller rotation.
● Power configuration: 212cc gasoline engine, 7.5 HP, independent fuel tank, electric start with recoil backup
● Structure: integrated 12V electric vacuum priming unit, automatic pressure relief after shutdown, drain plug at the pump bottom for winter freeze protection
● Operating safety: never run the centrifugal pump dry for extended periods — dry running will quickly destroy the water seal and permanently damage the pump
● Three water sources: tank discharge (high flow, 20 L/s) / municipal hydrant (inlet pressure kept < 0.4 MPa) / open-water suction (suction depth up to 7 m)
4 Warning and Electrical System
● Roof warning strobe: red fire warning light, switched on while responding to alert surrounding traffic and pedestrians, powered by the tricycle battery
● Vehicle wiring harness: connects battery and warning light, protected and bundled to avoid abrasion and short circuits against metal parts
● Original vehicle electrics: headlight, turn signals, horn and instruments all included; the electrical system serves lighting and signals only, not the fire pump
