"The Foton General Pickup Electric Pump Drainage Vehicle is a lightweight emergency drainage equipment specially modified by Huangshan Zhongguantai Special Equipment Co., Ltd. based on the chassis of the Foton Genera lG9 manual four-wheel drive diesel version. The total weight is 2980 kg, the vehicle size is 5630 × 1980 × 2000 mm, it complies with the national VI B emission standard, and enjoys the policy of exemption from purchase tax. This vehicle is centered around ""efficiency, flexibility, and intelligence"", specifically designed for small-scale water accumulation scenarios. It is a lightweight solution for flood emergency response, municipal rescue, agricultural drought resistance, and well and river drainage in basins, and agricultural water extraction.

Core positioning and application scenarios

This vehicle is mainly used for emergency drainage during flood prevention (low-lying areas of roads, culverts, underground garages, subways, etc.), remote water supply for forest fire prevention, municipal sewage discharge from manholes and rivers, foundation pit drainage, and agricultural drought resistance water extraction. The high maneuverability and four-wheel drive off-road performance of the pickup chassis make it particularly suitable for complex urban streets, rural roads, and unpaved surfaces in the wild. It can quickly respond to sudden water accumulation emergencies and fill the emergency gap where large equipment cannot reach."

"Core Configuration and Performance Advantages

1. Power and Chassis Performance

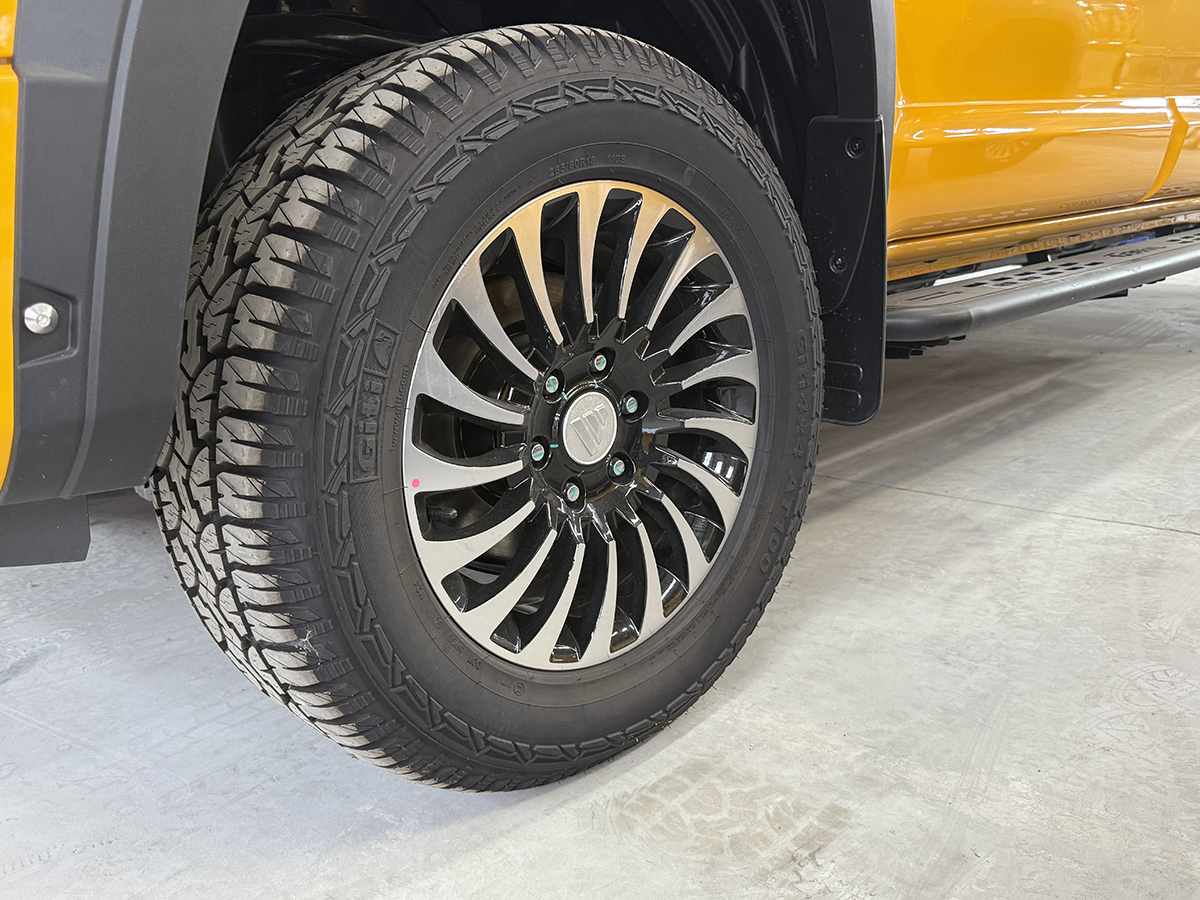

Equipped with a 2.0T diesel engine with a power output of 120KW, it is paired with a manual time-shift four-wheel drive system (4×4), featuring TOD sequential four-wheel drive (supporting 2H/AUTO/4H/4L modes) and off-road tires, offering excellent off-road capabilities. The chassis is standardly equipped with ABS anti-lock braking system, TCS traction control system, 360° panoramic camera, front and rear radars, and tire pressure monitoring, ensuring safe driving in complex road conditions; it has a 76L large fuel tank,Fuel consumption is 7.8 liters per 100 kilometers, and the range is very strong."

"2. Efficient Drainage System

Equipped with 1 portable submersible water pump of Zhongweitecheng ZGT-500-10, with a rated flow of 500 m3/h (head 12 m) and a maximum flow of 600 m3/h (head 10 m), it can discharge water quickly within 3-5 seconds. The pump uses a permanent magnet synchronous motor (with protection level IP68), capable of passing through 25 mm solid particles. The pump body and hydraulic components (impeller, pump shaft) are made of wear-resistant and corrosion-resistant stainless steel (impeller hardness HV ≥ 1000), suitable for 10-meter waterproof cable (IP67 connector) and 20-meter special water hose (8 inches, working pressure 0.9 MPa), adaptable to various water quality environments.

3. Intelligent Control and Power Assurance

Support remote control via mobile phone APP or computer terminal, capable of real-time monitoring of parameters such as pump speed, current, and temperature, achieving one-click start and unmanned operation. Equipped with 30KW Weichai brushless generator set, the fuel tank capacity meets 8-hour full-load operation requirements, and equipped with Smartgen intelligent control system, which has multiple protection functions such as overvoltage, undervoltage, and overheat, and is compatible with power supply from the mains. The power supply is stable and reliable."

"4. Professional Operation Design

The enclosure adopts an integrated fully enclosed structure. The outer skin is made of rust-proof cold-rolled steel, featuring fireproof, rainproof and soundproof functions. The interior is modularly laid out, integrating control systems, water pumps and accessories, with convenient operation. It is equipped with a 1.2-meter lifting lighting fixture (300W LED, 360° rotation, remote control) and a long row of warning lights (with flashing, alarm and speech functions), meeting the needs of night operations. The body adopts the Y07 engineering yellow warning color and is equipped with reflective markings to enhance the identification of the operation."

"5. Safety and Durability

All the vehicle's anchor components (bolts, washers, etc.) are made of stainless steel, and their anti-corrosion performance complies with the GB/T1220-2007 standard; it is equipped with 2 dry powder fire extinguishers, a dedicated grounding device (including 10-meter grounding wire) and a lightning protection system, and the water pump has automatic alarm and protection functions. The body has undergone anti-corrosion treatment and has a design lifespan of ≥15 years, which complies with multiple national standards such as GB7258-2017 and has obtained ISO9001 quality system certification.

This vehicle integrates high maneuverability, intelligent control and efficient drainage characteristics, taking into account off-road passability and operational flexibility, providing reliable support for small-scale emergency drainage operations, and helping to enhance the emergency response capabilities of grassroots disaster prevention and mitigation.

The above overview covers the key information of this drainage vehicle. If you have any requirements for the level of detail of certain content, or any other modification ideas, please feel free to inform us at any time."
