1. Product Overview

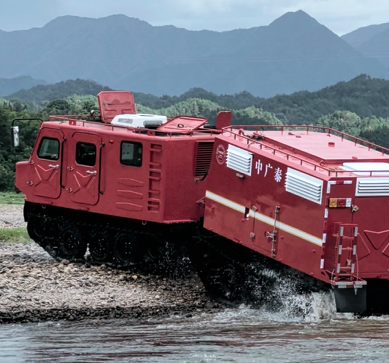

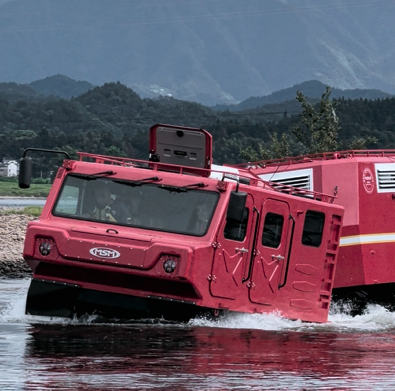

The crawler-type all-terrain emergency rescue vehicle is a high-mobility special vehicle independently developed by Huangshan Zhongguangtai for extreme and complex environments. It adopts an articulated twin-body structure: the front and rear car bodies are joined through an articulating mechanism, enabling pitching and serpentine (snake-like) articulation, with mechanical locking for all-track drive engagement.

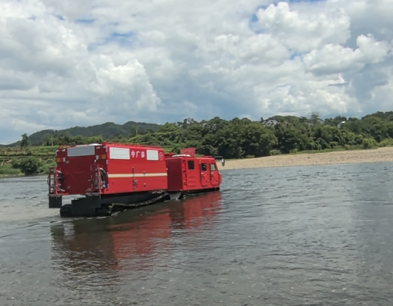

Equipped with four wide tracks, all of them driven, the vehicle offers high obstacle crossing, wide trench crossing, low ground contact pressure and amphibious capability. It travels across snow, ice, mountains, wetlands and mud, and operates in severe weather — wind, sand, rain and snow — crossing shallows, rivers, swamps, deserts, mountains and snowfields where no roads exist, performing emergency rescue, cargo transport and personnel transport missions.
2. Main Performance Parameters
|
Item |
Specification |
|
Structure |
Articulated twin-body (locked 4-track drive) |
|
Crew |
4 persons |
|
Overall Dimensions (L×W×H) |
(10000±100) × (2300±100) × (2700±100) mm |
|
Curb Weight |
≥ 10 t |
|
Payload |
≥ 3 t |
|
Track Width |
600 mm |
|
Ground Clearance |
400 mm |
|
Engine Power |
180 kW |
3. Mobility Performance
|
Item |
Value |
|
Maximum Speed |
≥ 45 km/h |
|
Average Speed |
≥ 20 km/h |
|
Water Speed (Floating) |
≥ 7 km/h |
|
Maximum Gradient |
≥ 30° |
|
Maximum Side Slope |
≥ 20° |
|
Trench Crossing |
≥ 1500 mm |
|
Vertical Wall Climbing |
≥ 800 mm |
4.Environmental Adaptability
|
Item |
Value |
|
Operating Temperature |
-25 °C to +46 °C |
|
Storage Temperature |
-30 °C to +70 °C |
Suitable for all climates from cold zones to the tropics — from northern ice and snow to southern heat and humidity — maintaining stable operation under wind, sand, rain and snow.
