1. Product Overview

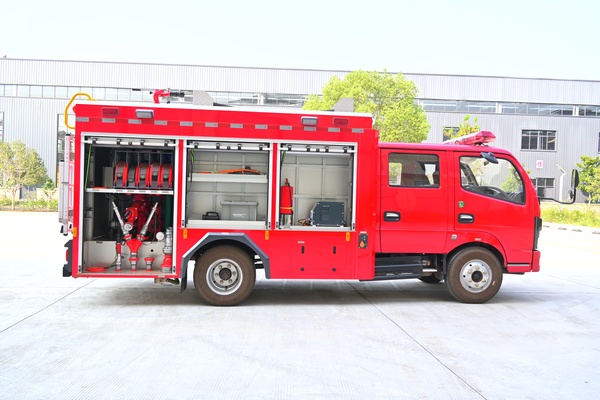

Built on the Dongfeng EQ1075DJ30DF double-cab 4x2 light-duty Class II chassis, this fire truck integrates a purpose-built firefighting superstructure. Power is taken from the chassis engine via a side-mounted PTO on the gearbox, driving a horizontal single-stage fire centrifugal pump. The complete package — 2000 L anti-corrosion water tank, multi-zone equipment compartments, intelligent centralized pump control system and roof-mounted fire monitor — makes it a light-duty fire suppression vehicle designed for grassroots mini fire stations.
The powertrain shares the chassis diesel engine; driving and pumping modes are switched by a pneumatic PTO control in the cab. With a simplified structure, low failure rate and low maintenance cost, the double cab carries 5 firefighters in one response. The 2000 L water capacity independently handles early-stage solid fires. Three water supply modes are supported: on-board tank water, continuous refill from a municipal hydrant, and vacuum self-priming suction from rivers and ponds — ideal for narrow lanes, factory workshops and old residential areas where large fire trucks cannot pass.
1. Compact body, excellent accessibility
Small overall dimensions and turning radius allow entry into old-district lanes wider than 2.5 m, factory passages and underground garages — solving the "last 100 meters" problem that large fire trucks cannot reach.
2. 2000 L standard water capacity for early-stage fires
Two tonnes of water independently handles early fires in homes, shops, workshops and stockpiles — continuous jetting for 8-12 minutes without an external source, enough to hold the fire until reinforcements arrive.
3. Integrated powertrain, low running cost
One chassis engine drives everything — no separate auxiliary engine means far fewer parts, fewer failure points, lower oil, filter and fuel consumption, and maintenance of only one power system.
4. Corrosion-resistant and durable
Dual anti-corrosion water tank, full stainless pipework and electrophoretic paint suit the vehicle for humid southern climates, northern freeze-thaw and dusty or mildly corrosive industrial sites.
5. Intelligent centralized control, easy to learn
The rear LCD console shows all operating parameters with clearly marked valves; the PTO switch sits in the cab. Company security staff and part-time village firefighters can operate independently after brief training.
6. Multi-purpose capability
Beyond firefighting: plant fire patrol, road washing, site dust control, summer road cooling, drought relief water delivery and small oil-spill washing — one vehicle, higher utilization.
2. Core Technical Specifications
|
Item |
Specification |
|
Water Tank Capacity |
2000 L |
|
Rated Flow |
20 L/s |
|
Maximum Suction Lift |
7 m |
|
Maximum Jet Range |
≥ 50 m |
|
Overall Dimensions (L×W×H) |
6330 × 2020 × 2660 mm |
|
Gross Vehicle Weight |
6750 kg |
Chassis Configuration
|
Item |
Configuration |
|
Chassis Model |
Dongfeng EQ1075DJ30DF double-cab 4x2 light-duty Class II chassis |
|
Cab |
Double cab, 4 doors, 5 seats (2 front + 3 rear), one-piece widened mirrors |
|
Powertrain |
China-VI turbocharged diesel engine, rated 85 kW, hydraulic power steering |
|
Tires |
7.00R16 heavy-duty tubeless wheels on steel rims |
|
Chassis Dimensions |
6275 × 1925 × 2660 mm |
|
Maximum Speed |
90 km/h (≤ 60 km/h recommended on emergency response) |
