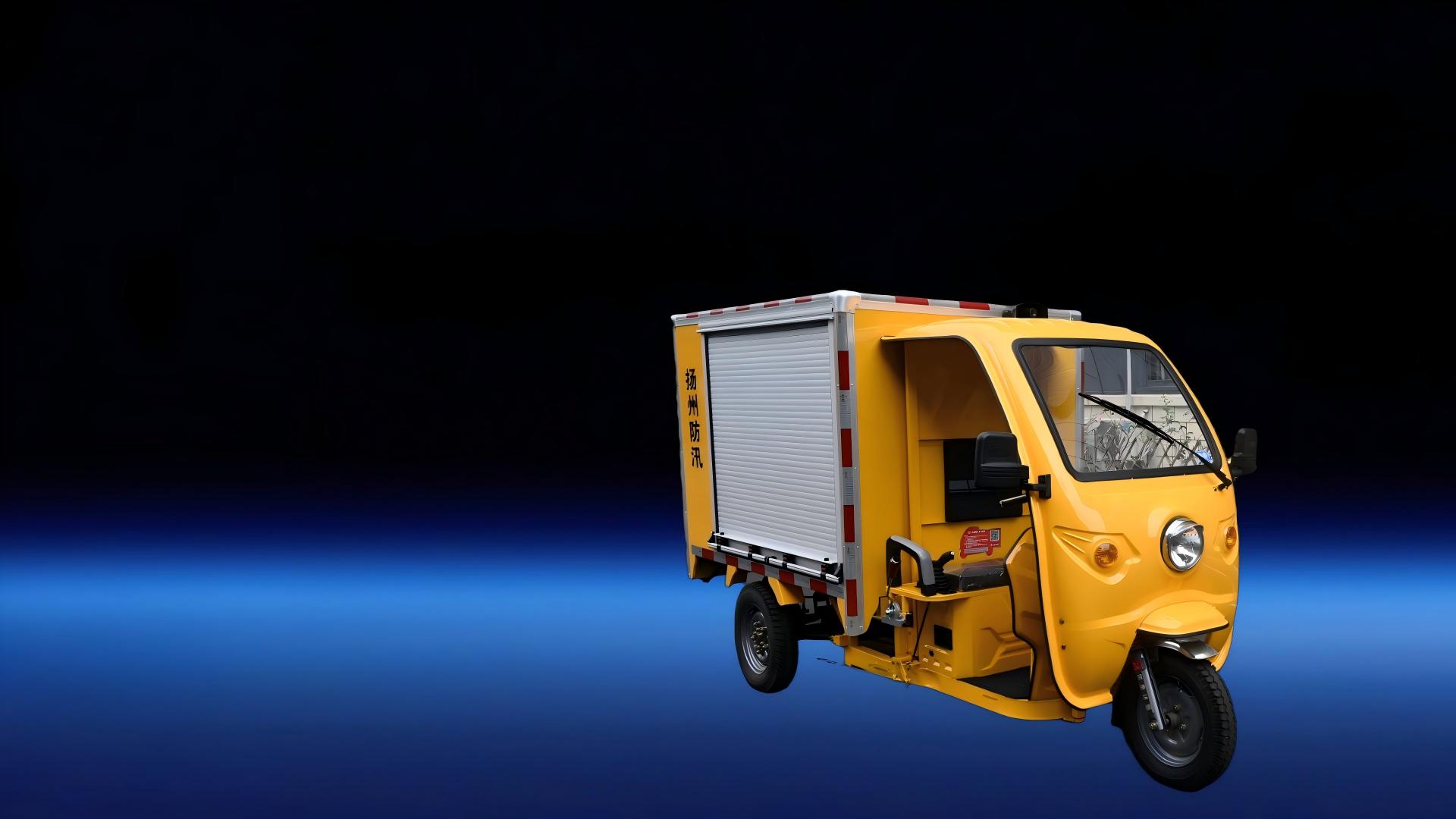

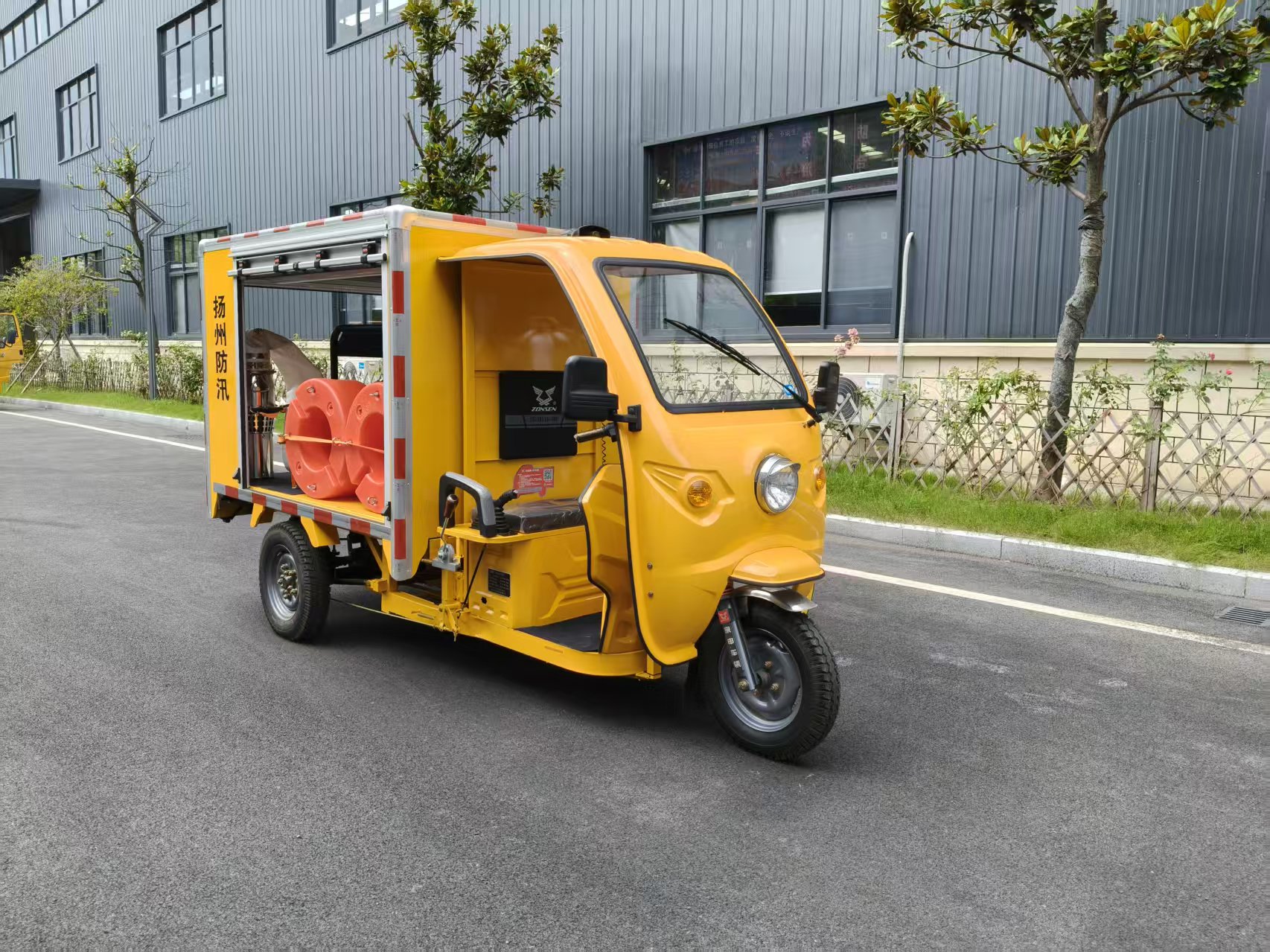

The mini electric rescue vehicle (model number ZGT-SL-500) is a small multi-functional emergency equipment developed by Huangshan Zhongguantai Special Equipment Co., Ltd. It integrates transportation, operation, and safety protection functions, and is specifically designed for narrow spaces and short-distance emergency scenarios. This vehicle is powered by electricity as its core, and integrates functions such as power generation, drainage, and intelligent monitoring. It is an ideal equipment for urban flooding, small-scale engineering rescue, and agricultural irrigation.

"Core parameters and basic configuration

Overall dimensions: L 3300mm × W 1200mm × H 1800mm, load capacity 500kg, capable of flexibly adapting to narrow areas such as alleys and underground garages.

Power performance: Equipped with a 1500W motor, maximum speed 40km/h, range 60km, meeting the needs of short-distance emergency mobility; exterior is painted in engineering yellow, equipped with reflective markings and letter stickers, enhancing operational recognizability.

Safety configuration: Standard features include a collision avoidance radar module (measurement range 5.0m, accuracy 0.05m), engineering warning lights and speakers, real-time monitoring of obstacles and early warnings to ensure operational safety."

"Core System and Performance Advantages

1. Power Generation System

Power: 22.5Kw. Supports one-button start-up. Rated voltage: 380V/230V. Equipped with a digital intelligent control system (in Chinese interface). Features multiple protection functions such as leakage, overvoltage, and overheating. Can meet the power demands of drainage equipment and other on-site electrical needs. Continuous operation time is suitable for the working scenarios.

2. Drainage System

Uses dry composite motor (with protection level IP68). Drainage flow rate: 250m3/h. Head: 8m. Compatible with DN150 diameter. The pump and impeller are made of stainless steel, with strong corrosion resistance. Can pass through 25mm solid particles. Supports dry start without water and automatic gate adjustment functions. Standardized 20m submersible cable (with IP67 waterproof connector) is provided, suitable for complex water quality environments.

3. Intelligent Control

The control cabinet adopts an integrated design (with protection level IP55), supporting dual power supply modes of diesel generator or mains power. It integrates power monitoring, high-frequency output monitoring and leakage protection functions, and can be quickly separated from the vehicle, adapting to outdoor rainproof environments."

"Structural features and practical design

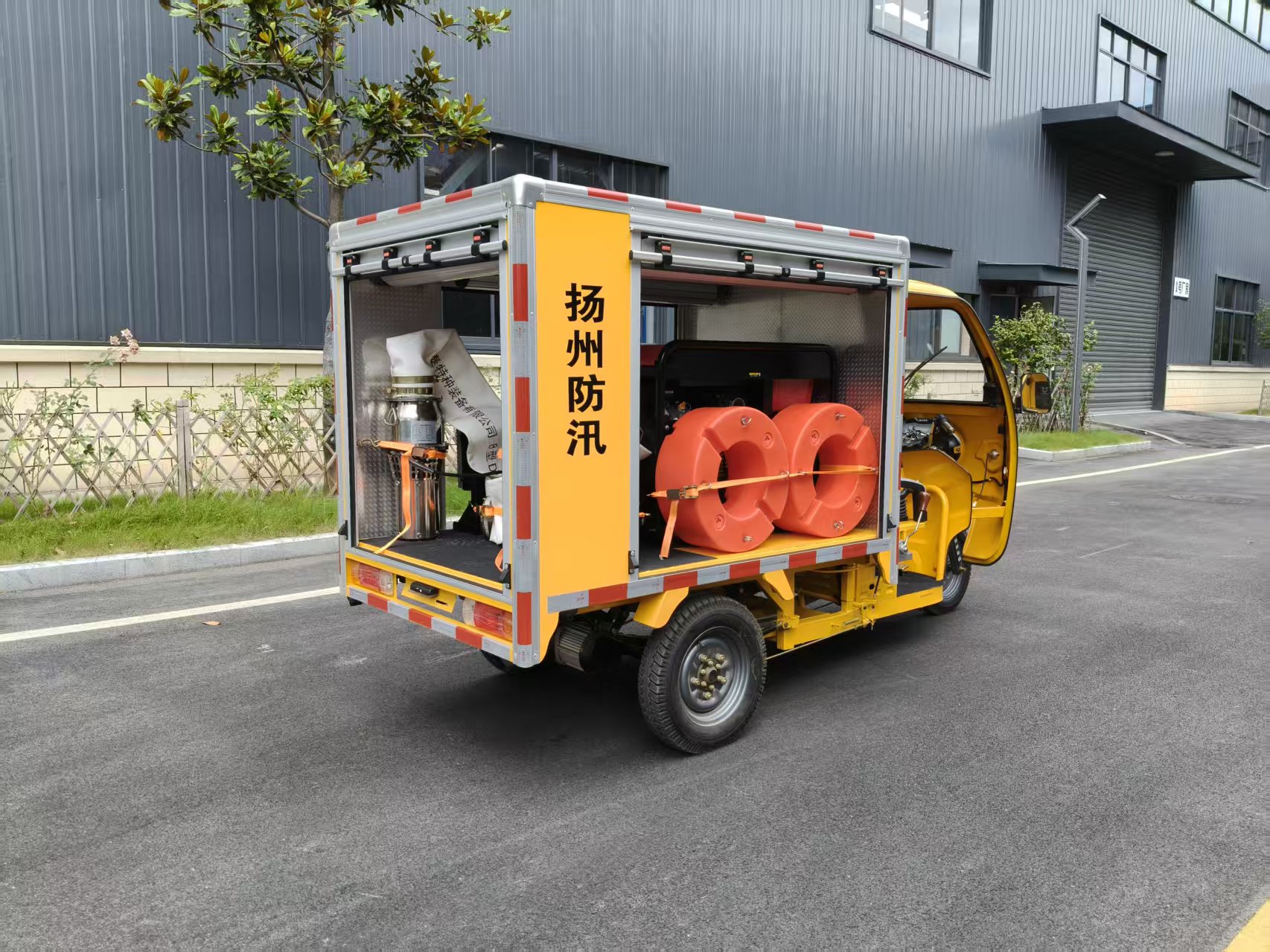

Trunk structure: The frame is made of rectangular steel pipes welded together, the outer cover plate is a special cold-rolled steel plate, and the inner cover is a small-patterned aluminum plate, featuring wear resistance and rust prevention properties; there are roller shutter doors on both sides and at the rear, facilitating the loading and unloading of equipment and its use, and the protective performance is suitable for various environmental operations.

Modular layout: Integrating the power generation system compartment, equipment compartment, and silent compartment, the space planning is compact, taking into account tool storage and operational convenience, meeting the requirements for rapid deployment in emergency operations. Application scenario

Urban flood emergency response: Applicable to scenarios such as road water accumulation and underground garage water backflow, quickly pumping out water to restore traffic.

Water conservancy and agriculture: Supports temporary drainage for reservoir maintenance, irrigation and drainage for farmland, and water extraction for drought resistance. Flexible and adaptable for field operations.

Industrial emergency: Can be used for factory wastewater treatment and drainage of small-scale mine tunnels. Resistant to mild corrosive media.

This vehicle, through its compact size and multi-functional integration, fills the gap in the application of small emergency equipment in narrow spaces. Its electric drive feature combines environmental protection and mobility, providing an efficient solution for short-distance emergency rescue."
