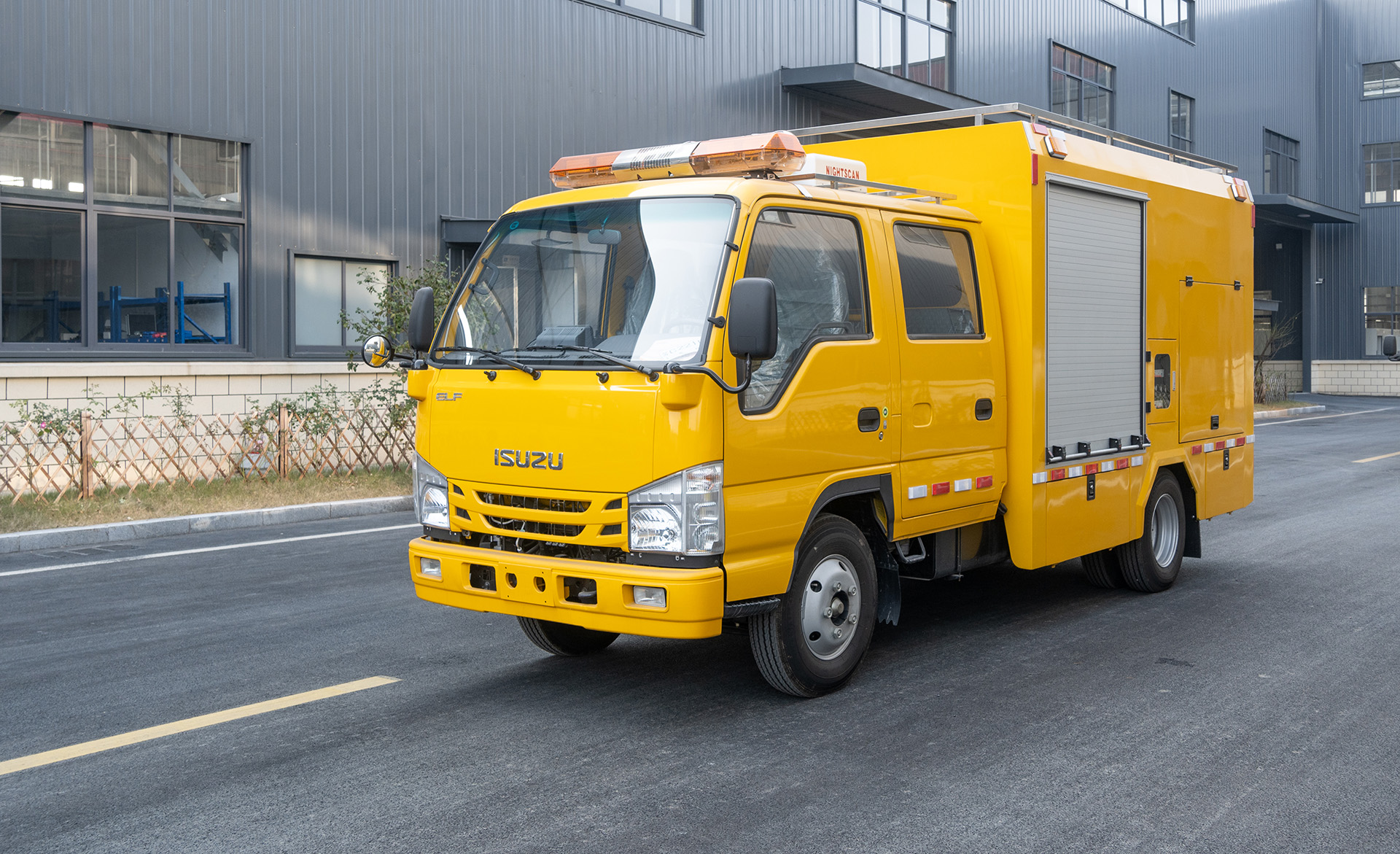

The ISUZU double-seater 1000m²/h drainage rescue vehicle is a lightweight emergency drainage equipment modified based on the ISUZU chassis by Huangshan Zhongguangtai Special Equipment Co., Ltd. Its total weight is 4495kg and it complies with the national emission standard of Grade 6B. It can be registered with a blue license plate and enjoy the policy of exemption from purchase tax. This vehicle has the core advantages of flexibility, intelligence, and efficient drainage. It is specially designed for small-scale water accumulation scenarios and is an ideal equipment for flood control and emergency response in municipal areas.

"Core positioning and application scenarios

This vehicle is mainly used for flood control and emergency drainage. It can be applied in various scenarios such as low-lying areas on roads, culverts, tunnels, underground garages, subways, municipal manholes, and rivers. It also supports long-distance water supply for forest fire prevention, water extraction for drought resistance in agriculture, and drainage operations in confined spaces. Its compact body and flexible handling performance make it particularly suitable for navigating complex urban road conditions and rural roads, enabling it to respond quickly to sudden water accumulation emergencies."

"Core Configuration and Performance Advantages

1. Power and Chassis Performance

Equipped with Qingling diesel engine, with a power of 96kw and a maximum speed of 105km/h, the power output is stable and the fuel economy is excellent. The chassis adopts a double-row seat design, capable of accommodating 5 people, and is equipped with ABS anti-lock system, 360° panoramic camera and reversing radar to ensure driving safety; the overall dimensions are 5990×2065×3150mm, the wheelbase is 3360mm, the vehicle handling is strong, and it can adapt to narrow road operations."

"2. Efficient Drainage System

Equipped with 2 intelligent submersible pumps, with a total rated drainage flow of 1000m3/h, the water can be discharged quickly within 3-5 seconds. The pumps use permanent magnet synchronous motors and can pass through solid particles of 25mm. The pump body and hydraulic components are made of wear-resistant and corrosion-resistant stainless steel, compatible with 20-meter waterproof cables and wear-resistant water hoses, suitable for complex water quality environments."

"3. Intelligent Control and Power Assurance

Support remote control via mobile app or computer interface. It can monitor the operating status of the equipment (such as speed, current, voltage, etc.) in real time, enabling one-click start and unmanned operation, significantly reducing labor costs. Equipped with a 60KW Weichai brushless generator set, the fuel tank capacity is sufficient for 8-hour full-load operation. It is equipped with the Zhengzhou Zhongzhi intelligent control system, which has multiple protection functions such as overvoltage, undervoltage, and overcurrent, and is also compatible with the power supply mode of the mains electricity. The power supply is stable and reliable."

"4. Professional Operation Design

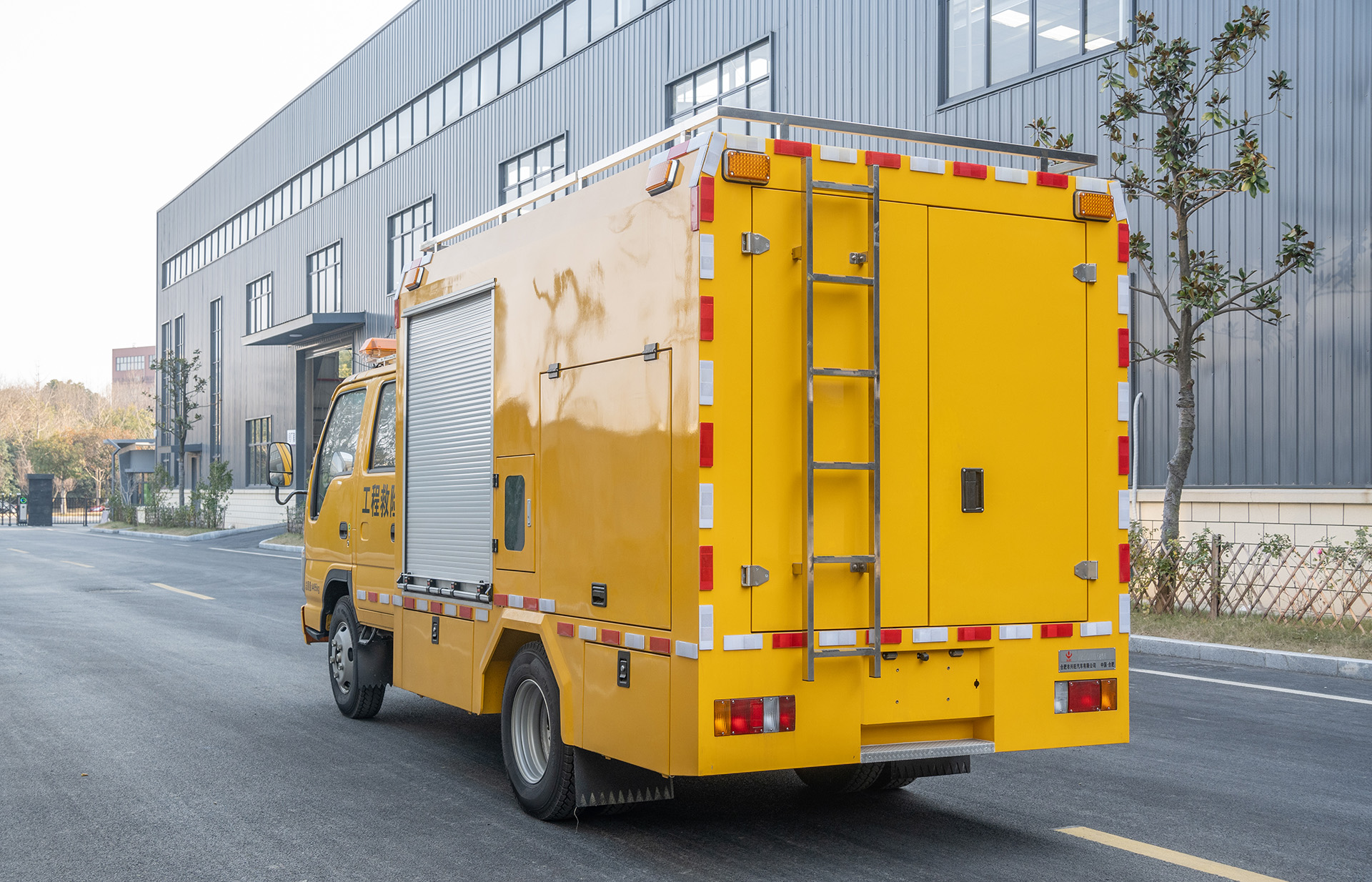

The enclosure adopts an integrated closed structure. The interior is divided into a control room, a generator room, and a water pump room, with a compact and practical layout; the exterior is equipped with maintenance doors, roller shutters, and an internal boarding ladder, facilitating the access and maintenance of the equipment. It is equipped with 1.8-meter height adjustable LED lighting and a long row of warning lights, supporting dual control via wireless and wired methods, meeting the lighting requirements for night operations; the body is painted in engineering yellow warning color and is marked with reflective signs to enhance the identification during operations."

"5. Comprehensive Safety Assurance

The entire vehicle is equipped with 2 dry powder fire extinguishers, a dedicated grounding device (including 10-meter grounding wire) and a lightning protection system. The water pump has automatic alarm and protection functions for overvoltage, undervoltage, overheating, etc. The electrical control cabinet has a protection level of IP55, and the cable interface adopts IP67 waterproof design, which is suitable for operation in humid environments. The body is treated for corrosion resistance and has rainproof, dustproof and flame-retardant properties, meeting the safety standards of GB7258-2012.

This vehicle has passed the ISO9001 quality system certification. It integrates high maneuverability, intelligent control and efficient drainage features, providing a reliable solution for small-scale emergency drainage, and helping to enhance the emergency response capabilities for disaster prevention and mitigation."
