2. Core Technical Specifications

3. Six Key Advantages

1. Compact body, excellent accessibility

Small overall dimensions and turning radius allow entry into old-district lanes wider than 2.5 m, factory passages and underground garages — solving the "last 100 meters" problem that large fire trucks cannot reach.

2. 2000 L standard water capacity for early-stage fires

Two tonnes of water independently handles early fires in homes, shops, workshops and stockpiles — continuous jetting for 8-12 minutes without an external source, enough to hold the fire until reinforcements arrive.

3. Integrated powertrain, low running cost

One chassis engine drives everything — no separate auxiliary engine means far fewer parts, fewer failure points, lower oil, filter and fuel consumption, and maintenance of only one power system.

4. Corrosion-resistant and durable

Dual anti-corrosion water tank, full stainless pipework and electrophoretic paint suit the vehicle for humid southern climates, northern freeze-thaw and dusty or mildly corrosive industrial sites.

5. Intelligent centralized control, easy to learn

The rear LCD console shows all operating parameters with clearly marked valves; the PTO switch sits in the cab. Company security staff and part-time village firefighters can operate independently after brief training.

6. Multi-purpose capability

Beyond firefighting: plant fire patrol, road washing, site dust control, summer road cooling, drought relief water delivery and small oil-spill washing — one vehicle, higher utilization.

4. Chassis Configuration

5. Body Structure

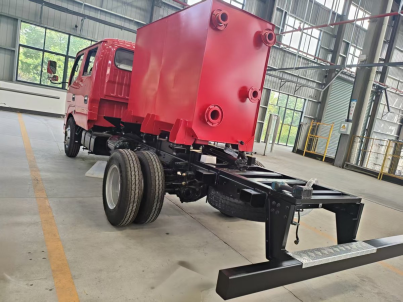

The body is a one-piece structure with a flat roof. It uses a skeleton-sandwich design: outer skin of 2.0 mm automotive alumina sheet over anti-rust treated welded steel tubes, providing fire resistance, rain proofing, noise reduction and flame retardancy. The vehicle is finished in fire-truck red with warning markings.

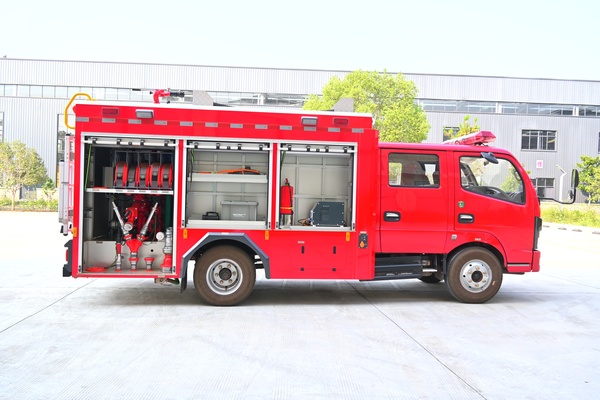

Three aluminum roller-shutter compartments on each side feature built-in rubber dust and water seals. Each bay is functionally organized — water intake, firefighting equipment — storing all accessories for the three water supply modes. A dedicated PPE compartment stores protective suits, helmets, SCBA cylinders, fire gloves, boots and safety ropes.

6. Core Firefighting Equipment

Three Water Supply Modes

- Tank discharge: operating mode 1 (20 L/s, 1.0 MPa) — high flow for fast suppression;

- Municipal hydrant: inlet pressure kept below 0.4 MPa, operating mode 1 or 2;

- Open-water suction (rivers/ponds): operating mode 3, using the 7 m maximum suction lift to draw natural water sources.

Hose Configuration

Discharge hoses: 65 mm diameter, polyester filament polyurethane lined with wear-resistant waterproof resin, fitted with stainless steel quick couplings and clamps.

7. Intelligent Control System

Display Panel

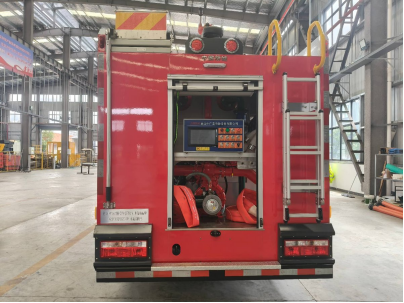

Mounted outside the weatherproof cabinet: high-definition LCD with adjustable brightness for strong or weak light. Shows engine water temperature, oil temperature, oil pressure and RPM in real time, plus equipment status (standby, running, fault).

Alarm Devices

Audible-visual alarms and indicator lights beside the display panel give an immediate warning when a fault occurs.

Control Buttons

Start, stop and emergency-stop buttons in waterproof, dust-proof design. The emergency stop is a red mushroom-head button, raised above the panel for fast access.
